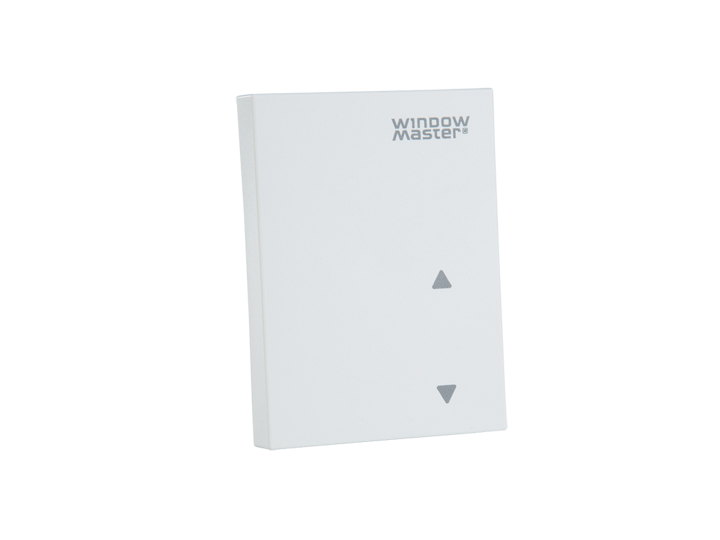

NV Embedded® Sensor
WWS 100
- Indoor room sensor
- Used for measuring the air quality by means of temperature, CO2-level and relative humidity measurements
- To be used in NV Embedded® solutions
About WWS 100
Main features
-
Natural ventilation
The product is suitable for comfort ventilation to ensure that the building’s users enjoy a comfortable indoor climate
Product Details
In addition to sensor functionalities, the unit also has a push-button for simultaneous operation of all windows or selected motor groups in the room/zone; e.g. Close or open all windows.
Typically, one sensor per room/zone is used but multiple sensors can be used in the same room/zone if e.g. minimum, maximum and mean values are requested.
Via WSK-Link™ the sensor is connected to a WindowMaster panel type WCC 310 PLUS, WCC 320 Plus, WSC 310 Plus, WSC 3x0 Plus, WSC 520, WSC 540 or WSC 560.
Specifications
| Colour options | Studio white (RAL 9016) |
| Measurement of temperature | 0°C - 50°C, ±0,5°C @ 25°C & ±1°C @ 0..50°C |
| Measurement of relative humidity | 1 - 100% ±3% @ 25°C |
| Current consumption | 2 A |
| Power Supply | WSK-Link™ |
| CO2 accuracy | ±150 ppm during product life cycle at 25℃ and 950 - 1050 hPa |
| Size | 114 x 83 x 24 (H x W x D)mm |
| Material | Self extinguishing thermoplastic |
| IP rating | IP 20 |
| Networked standby consumption | Please see attachment for networked standby consumption under the MotorController / smoke control panel to which the unit is connected. |
Delivery includes
SensorIntelligent control of windows: MotorLink®
MotorLink® is a communication technology that enables 2-way control and feedback between window actuators and the Building Management System via the MotorController. All WindowMaster control systems are MotorLink® capable with many of our actuators. Click below to learn more and see related products.
