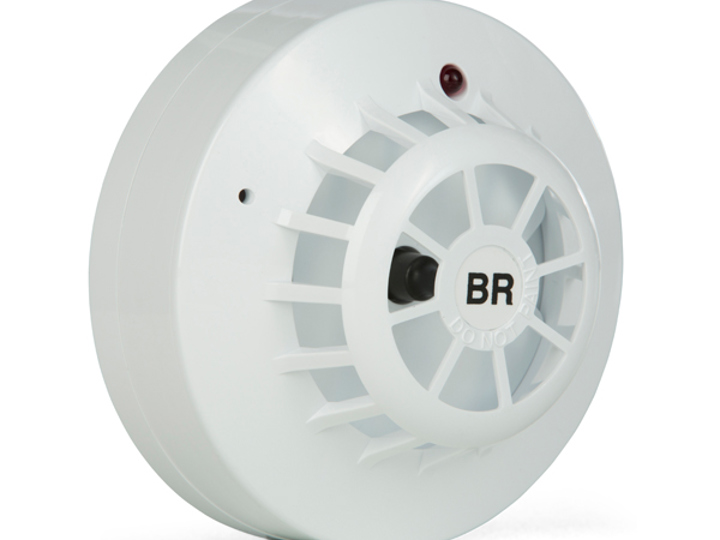

Differential heat detector

WSA 310 01

  • Differential heat detector
  • Reacting to a rapid rise in temperature

Get a quote

About WSA 310 01

Main features

  • Smoke ventilation

    Smoke ventilation

    The product is suitable for smoke ventilation and use natural driving forces for the efficient exhaust of smoke and heat

  •
VdS certified

    VdS certified

    The product is certified in accordance with the independent testing institution VdS

Product Details

The differential heat detector is reacting to a rapid rise in temperature, and ensures early detection of fires.
The differential heat detector is used in areas where surrounding conditions do not permit the use of smoke detectors.
The differential heat detector has wide intake holes to allow the air flow to reach the terminal sensors immediately, where the heat is measured and evaluated. Indication of alarm via
red LED.
With a rapid rise in temperature and at a maximum temperature of 75°C the differential heat detector is triggered and will send signal to and the smoke panel for activating the alarm.
The signal from the differential heat detector has priority in
the WSC unit.
The differential heat detector is tested according to Vds. Approval no.: G200060.





Specifications

Current consumptionRest: 55μA; Alarm: 52mA by 24V
Power Supply24 V DC
Size100 x 50 (Ø x H)mm
MaterialPlastic
IP rating23D
Alarm indicationRed LED on the differential heat detector

Delivery includes

Differential heat detector incl. mounting plate
