CompactSmoke™ 10A / 20A smoke control panel with DIP switches for configuration of smoke and natural ventilation in up to 2 rooms / zones

Product discontinued

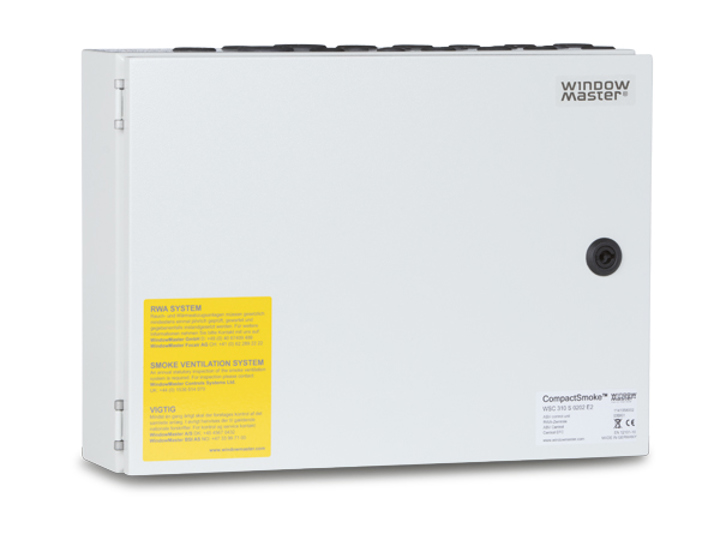

WSC 310 / 320 STANDARD

  • Compact smoke control panel
  • 10A or 20A
  • 2 smoke / 2 comfort ventilation groups

This product has been discontinued, but please reach out to us to hear about our alternative products.

Contact us and get a quote.

Get a quote

About WSC 310 / 320 STANDARD

Main features

  • Natural ventilation

    Natural ventilation

    The product is suitable for comfort ventilation to ensure that the building’s users enjoy a comfortable indoor climate

  •
Smoke ventilation according to EN 12101-10

    Smoke ventilation according to EN 12101-10

    The product is suitable for smoke ventilation according to EN 12101-10 and uses natural driving forces for the efficient exhaust of smoke and heat

  •
230V rated voltage

    230V rated voltage

    The product use rated voltage 230V

  •
Output current of 20A

    Output current of 20A

    The product have a maximum output current of 20A

  •
MotorLink®

    MotorLink®

    The product communicates with control panels with MotorLink® – an intelligent digital communication from WindowMaster

Product Details

Smoke control panel for smoke and comfort ventilation
Compact smoke control panel WSC 310 STANDARD and WSC 320 STANDARD for control of ±24V DC window actuators with a total power consumption up to max. 10A / 20A for smoke extraction and daily comfort ventilation.
The panel can be used in small and medium sized buildings as well as in building sections e.g. stair cases and restaurants.

The panel has
- 2 smoke / 2 daily ventilation groups
- 10A or 20A

DIP switches
The panel is configured on DIP switches.

Opening speeds
CompactSmoke™ WSC 310 and WSC 320 STANDARD gives the possibility of up to actuator speeds depending of the type of connected actuator:
a) ±24V DC standard motor - 1 speed (H&S)
b) MotorLink® motor - 2 speeds (H&S / comfort ventilation)

The different speeds
H&S: a fast speed with H&S ventilation and security functions.
H&S has always first priority.
Comfort ventilation: a medium fast speed by comfort ventilation

Ease of cabling
The use of bus technology for the break glass units means that the need for cabling in the building is significantly reduced.

Certification
Approved and certified according to EN 12101-10.

Specifications

Output current10 - 20
Primary Voltage230V AC, 50Hz (85-264V AC, 47-63Hz)V AC
Motor Group Options2 motor groups
Motor line options2 motor lines
IP rating54
MaterialMetal housing
Colour optionsGrey (RAL 7035)

Delivery includes

Smoke control panel WSC 310 STANDARD (10A) or WSC 320 STANDARD (20A) Delivered with: 1 x WSA 501 (10kΩ-resistors, 10 pcs) 2 x WSA 510 end of line module 2 x back-up batteries: WSC 310 is delivered with 2 x WSA 007 and WSC 320 is delivered with 2 x WSA 012

Intelligent control of windows: MotorLink®

MotorLink® is a communication technology that enables 2-way control and feedback between window actuators and the Building Management System via the MotorController. All WindowMaster control systems are MotorLink® capable with many of our actuators. Click below to learn more and see related products.

Read more
