Motor interface 230VAC/24VDC, 1A
WUF 110
- 1A
- Individual operation of a ±24V DC actuator from a 230V AC control system
About WUF 110
Main features
-
Natural ventilation
The product is suitable for comfort ventilation to ensure that the building’s users enjoy a comfortable indoor climate
-
230V rated voltage
The product use rated voltage 230V
Product Details
To be use with one or more WindowMaster ±24V DC actuators (with a total power consumption of 1A) as well as a keypad e.g. WSK 100.

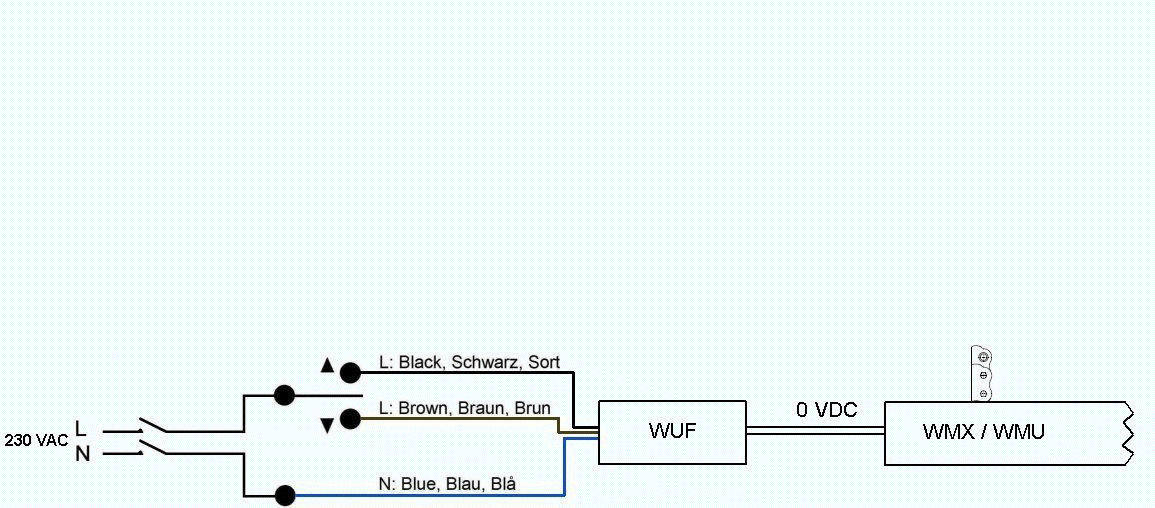

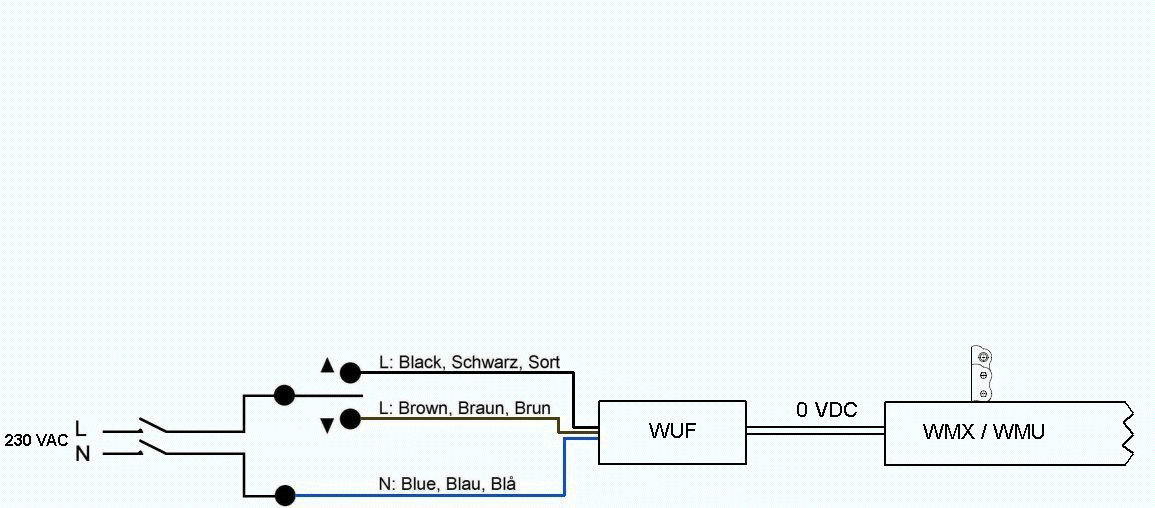

The interface has one phase for opening the window and one phase for closing the window.
The interface can be installed in the window profile next to the WindowMaster window actuator or fitted on the window frame.
The connection to the actuator is made via a 2-pin connector. The 2m 3-core cable is connected to the 230V main supply via the switch.
Specifications
| Material | Plastic housing for surface mounting |
| Standby consumption | 2W |
| Size | 160 x 29 x 42 mm (WxHxD) mm |
| Insulation / Earthing | The product is a double insulated class 2 product, which means it will not require earth connection |
| IP rating | IP 44 |
| Primary Voltage | 230V AC, ±10%, 50/60Hz, 50VAV AC |
| Secondary voltage | 24V DC, max. 0.8A |
| Constant power | Yes |
Delivery includes

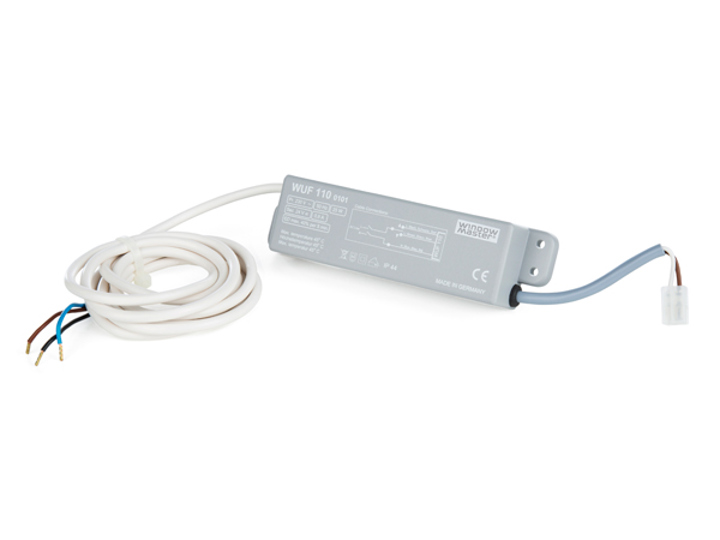

Interface with 2m net cable and 0.1m cable with nylon connector on the secondary side (24V).Intelligent control of windows: MotorLink®
