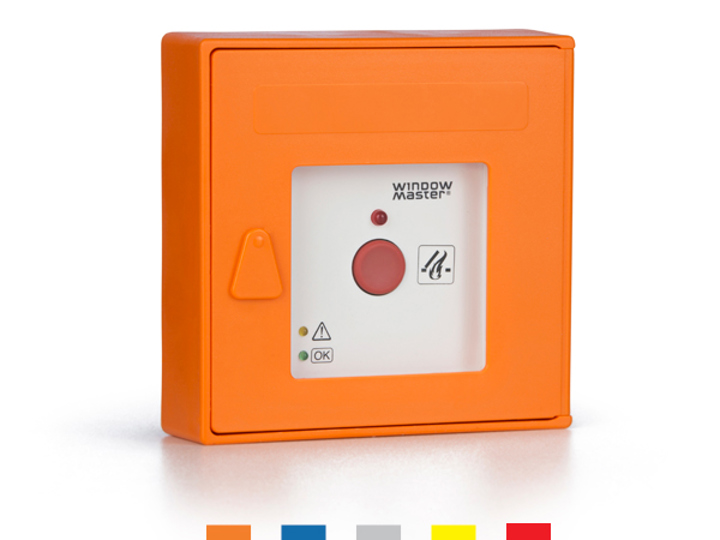

Break glass unit (primary) without audiable signal, plastic housing
WSK 321
- Primary break glass unit
- Without an audible signal
- Plastic housing
This product has been discontinued, but please reach out to us to hear about our alternative products.
Contact us and get a quote.
Get a quoteAbout WSK 321
Main features
-
Smoke ventilation
The product is suitable for smoke ventilation and use natural driving forces for the efficient exhaust of smoke and heat
Product Details
Break glass unit (primary) without an audible signal for smoke control panel type WSC 204, WSC 304, WSC 308, WSC 316 and WSC 4xx.
The coloured LED indicates fire triggering or if a fault is present on the system.
Press function:
– press button for ”EMERGENCY OPEN”
– re-set button (behind the door) after activation
LED -Display:
– red LED ”EMERGENCY”
– yellow LED ”fault”
– green LED ”operation”
Spare parts (glass, keys etc.) can be ordered separately. See the separate product sheets for the spare parts.
Specifications
| Material | Plastic housing |
| Break glass unit type | Primary |
| Rated Voltage | 24 V DC |
| Data communication | No |
| IP rating | 40 |
| Size | 125 x 125 x 36 (H x W x D)mm |
| Colour options | Grey Orange Red Yellow |
Delivery includes
Break glass unit with key unit and ”SMOKE VENT” text labels (22 languages)Intelligent control of windows: MotorLink®
